Welcome to our guide to understanding Shade Sail Posts and Footings.
Disclaimer:
Please note this is only an indicative guide based on our experience building shade sails and structures over many years. The information presented here is not certified by a structural engineer, and is based on firm ground conditions and low/med wind areas. Sites and situations vary therefore each shade sail installation including its post and footing needs to be assessed. If you would like to complete a DIY project please get in touch and we can refer you to an independent engineer and or building surveyor, prior to the start of any project check with your local building authority to see if a permit is required.
Shade Sail Posts / Poles : A critical Part of Any Shade Sail Installation.
Shade sail posts and poles are the unsung heroes of any outdoor shade solution. These sturdy structures provide the essential support for your shade sail, ensuring it remains secure and functional in various weather conditions. Choosing the right posts and poles is crucial for the longevity and effectiveness of your shade sail.
Types of Shade Sail Posts/Poles
Several materials are commonly used for shade sail posts and poles, each with its own set of advantages and disadvantages:
- Galvanised Steel Shade Sail Posts: Known for its durability and strength galvanised steel posts are often the best choice for shade sail posts. They come in a variety of sizes and thicknesses. In square hollow section (SHS) a typical residential shade sail will required a 100x100mm post or 139mm diameter round post (also referred to as 125nb pipe).
- Stainless Steel Shade Sail Posts: Stainless steel offers greater corrosion resistance than galvanised steel but is significantly more expensive. Stainless steel is often only available in thinner wall thickness and therefore not suitable for large sails or tall posts. For high end project in highly corrosive environments stainless steel is and option. Please contact us for further information below.
- Wood Shade Sail Posts: Offering a natural aesthetic, wooden posts can add warmth to your outdoor space. However, they are often not the best choice for shade sail posts due to the potential for wood to rot overtime posing a safety risk to the sail. Anther factor to consider when choosing timber posts is the size of posts required, a typical residential sail will require 200mm + diameter timber post. Due to the relative lack of strength compared to steel posts timber posts will often require bracing or cable supports.
- Aluminium Shade Sail Post: Aluminium provides high corrosion resistance but has a lower strength than mild / galvanised steel posts. Aluminium is becoming increasingly popular for framed patio shade sails which allow for the integration of other outdoor weather protection including louvered roof’s and blinds.
Shade Sail Post Footings : The Hidden Part of A Quality Shade Sail Installation.
Footings for Shade sails
The simplest method for post installation is to directly embed the posts into a concrete footing. Note:
- Concrete should be high strength 25mpa+
- Concrete needs to be thoroughly mixed prior to pouring around post
- Footings need to be founded into firm ground
- Posts should be leaning back 3-5% for the direction of pull from the sail
The table below gives and indication for the footing size required based on the height of the post. Note that consideration should also be given to the size of the sail.
|
Post Height |
Footing Size |
|
0m – 2.5m |
450mm dia x 1000mm deep |
|
2.6m – 3.0m |
450mm dia x 1200mm deep |
|
3. 1m -3.9 m |
450mm dia x 1400mm deep |
|
4.0m – 4.5m. |
450mm dia x 1600m deep |

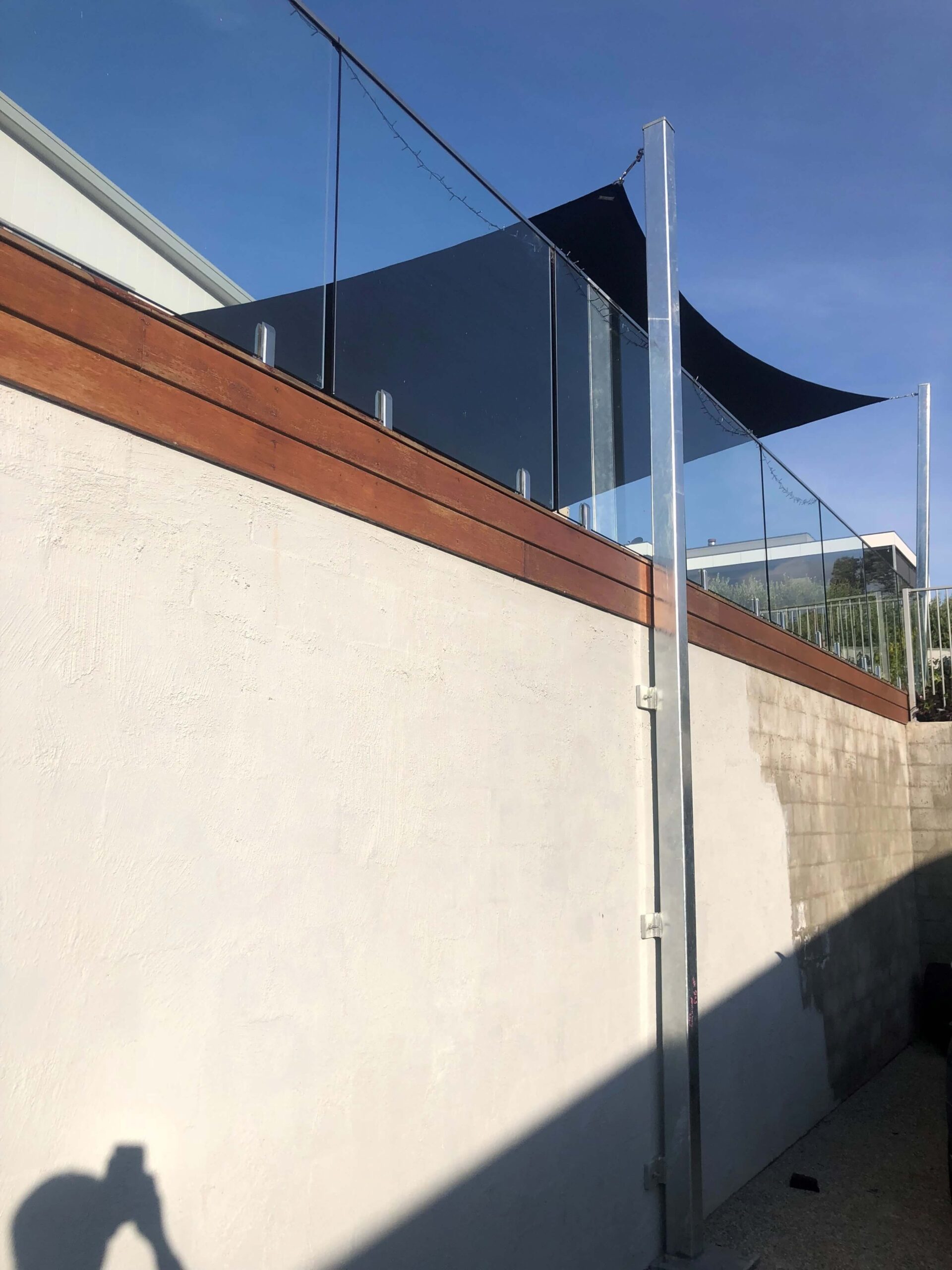

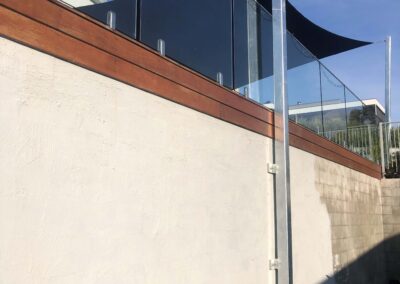

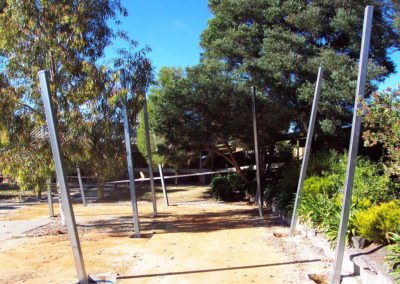

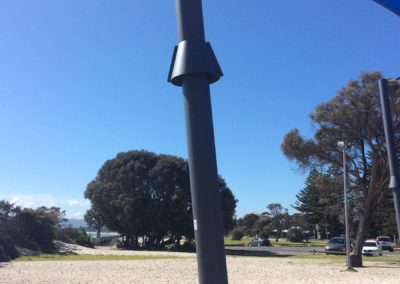

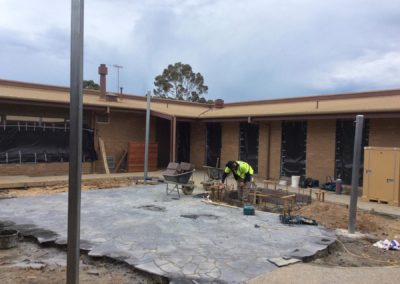

Shade Sail Post Gallery
Frequently Asked Questions for Pool Shade Sails in Melbourne
Why should I choose Peninsula Shade Sails to install my shade sail posts/poles in Melbourne?
Peninsula Shade Sail has been installting shade sail posts for 20+ years and in that time we have installed posts into may difficult locations.
Why Is It Recommended to Use Steel Shade Sail Posts?
Steel posts are stronger than timber post of the same size. Having strong posts is critical to providing a shade sail that lasts.
How do I choose the right size posts for my shade sail?
Several factors come into determining the right size post for a shade sail installation. The main two factors are shade sail size and post height. Given evey shade sail installation is unique we will need to review your project to provide adivce on which size post is correct for you job.
Is there a way to make my steel shade sail posts look 'natural'
Yes, Peninsula Shade Sails can arrange to have your shade sail posts painted in a colour that allows them to blend into your garden.
